When I bought the bike the owner, whom had owned the bike for a few months, said the previous owner had disconnected the automatic oil injection system meaning that fuel had to be premixed with oil. I don't know much about two strokes but I thought they all had to have oil added to the fuel so this didn't seem like a big issue at all.

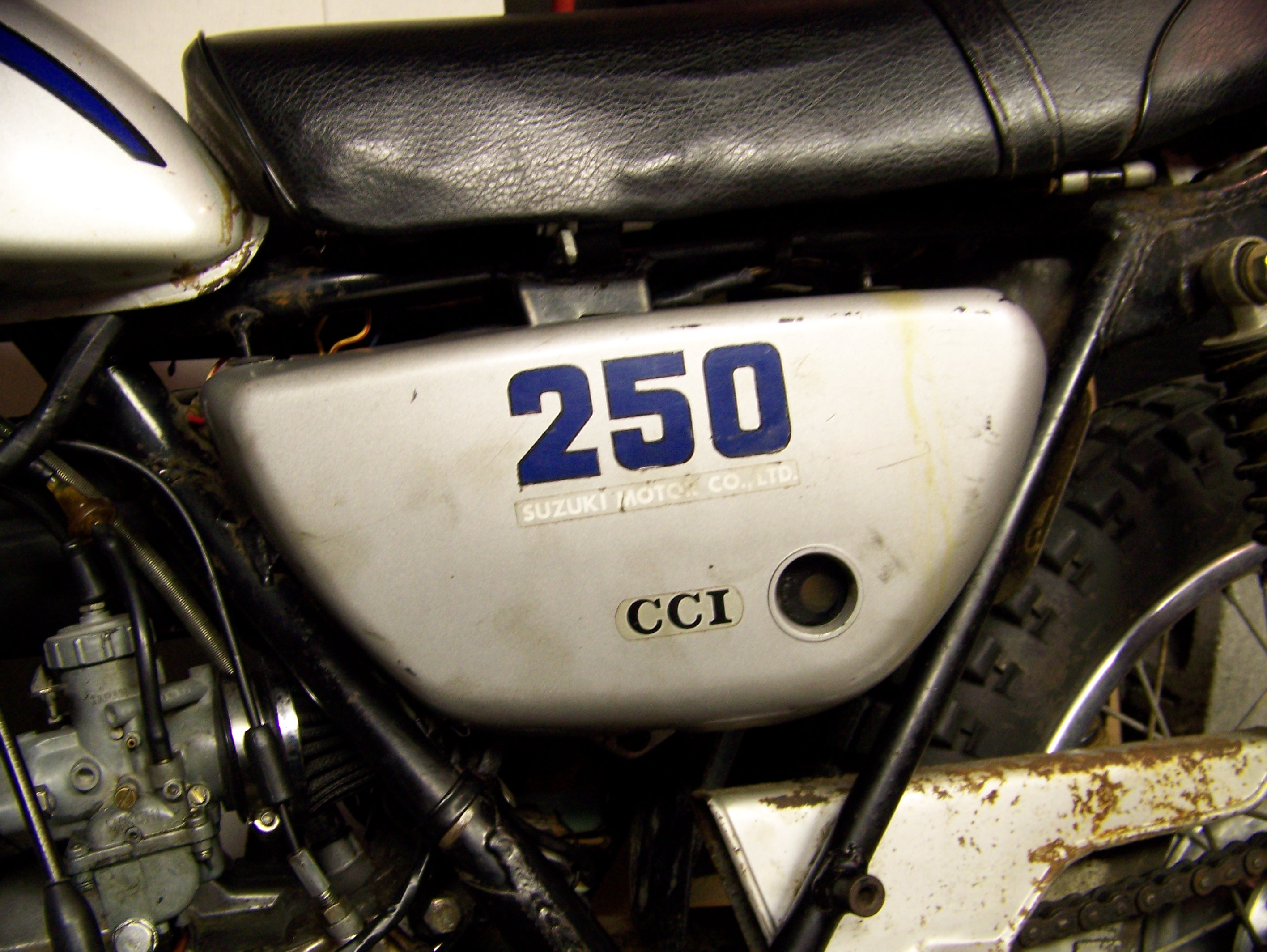

Just in case I did some research on what could be wrong with the oil injection system (Suzuki calls it CCI). I learned that it is gear driven off the crank (in a round about way). I also learned that it injects oil into the cylinder and onto the crank bearings. Pre-mix fuel alone will not properly lubricate one of the crank bearings.

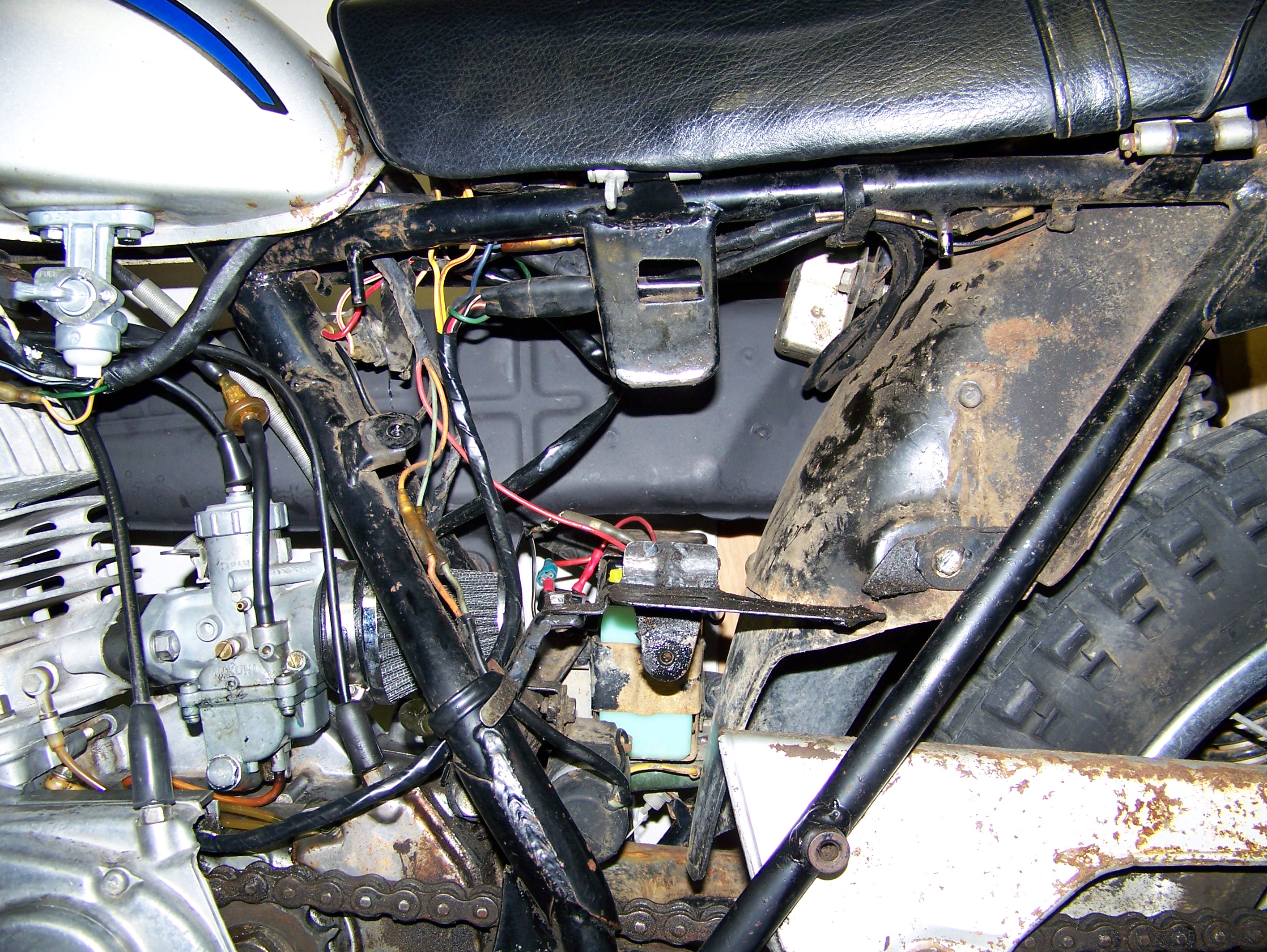

All this info, combined with the fact I didn't want to risk forgetting to add oil to to my gas, meant I would was going to try to fix the oil injector. I head out to the garage and removed the cover plate. Everything was there and in place with no obvious leaks or cracked lines. I decided to go ahead and reconnect the CCI pump to the oil reservoir and see if it worked. Thats when I finally found the problem, there was no oil reservoir!

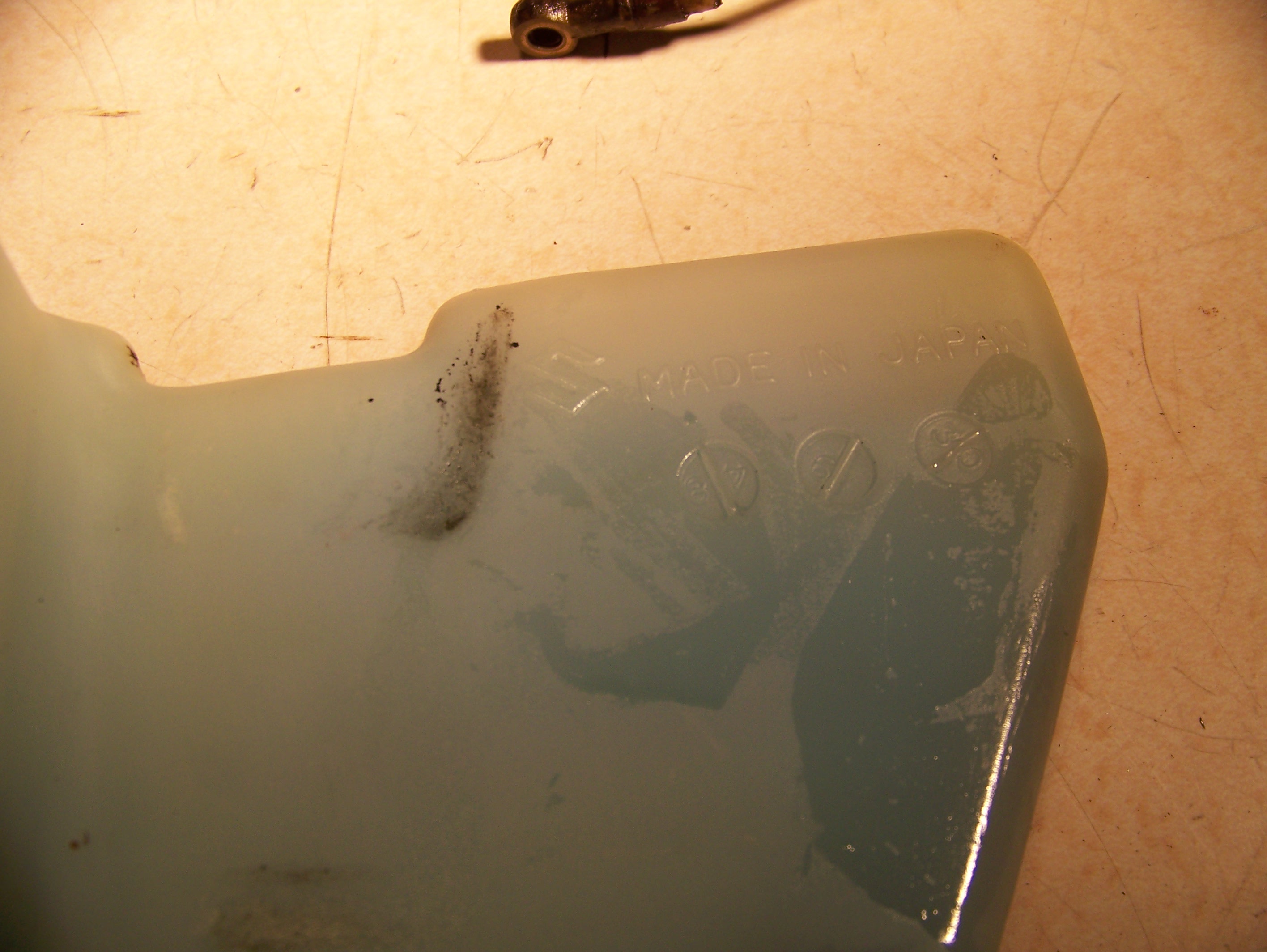

My best guess as to what happened was that the oil reservoir, which is plastic, developed a leak. The previous previous owner must have just chucked it and started premixing fuel. The CCI pump itself was probably still good.

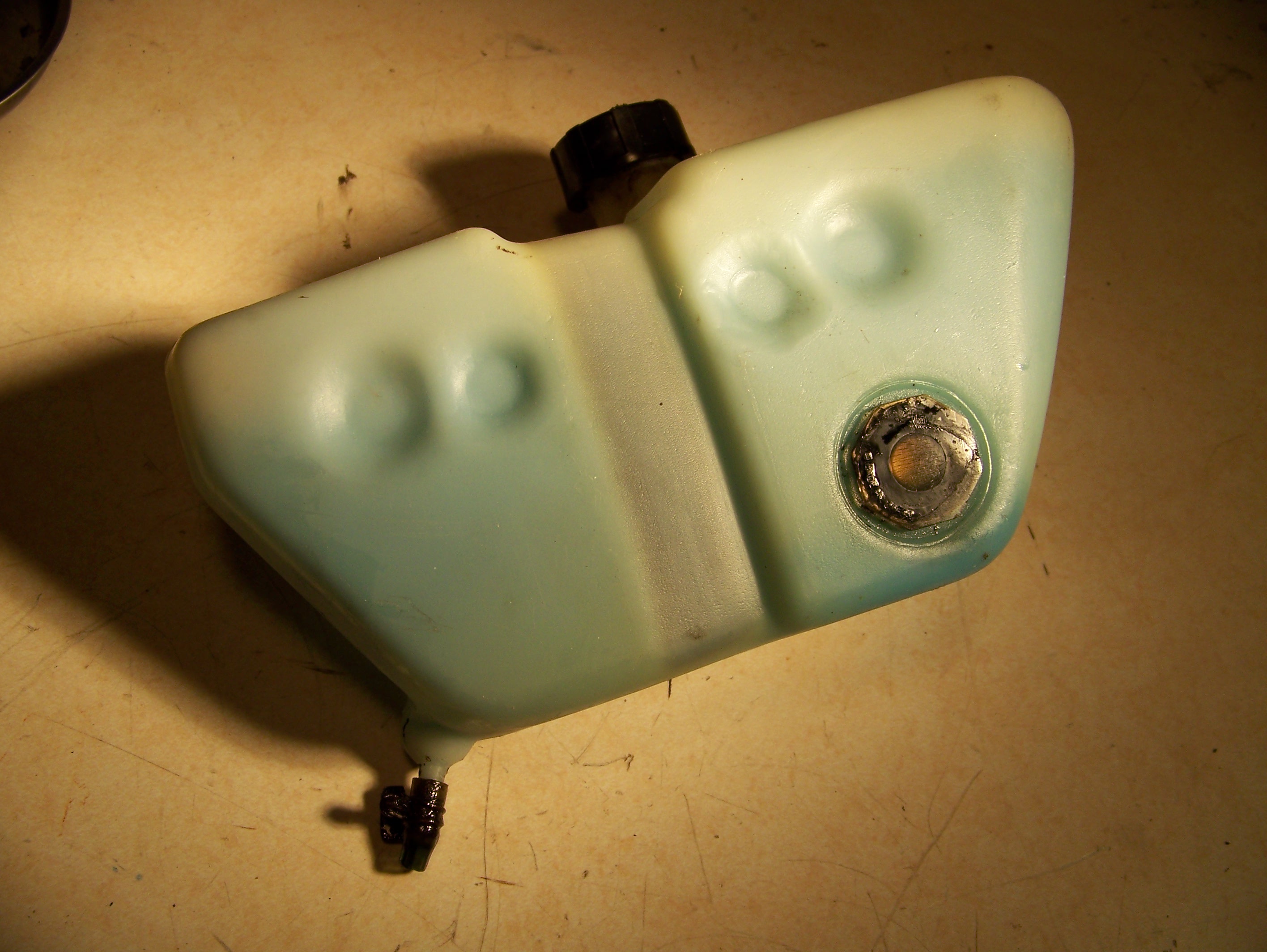

At least that was my theory as I dropped $30 on ebay getting a second hand oil reservoir. My theory was bolstered when I found that the mounting metal braket for the oil reservoir was broken in half. Someday I may order a new one of those too.

Anyways I hooked the pump up to the tank, ran the bike around the neighborhood and by the time I got back, oil had made it through the pump and out to the crank. There is still some air in the upper line that goes to the clyinder but I think it will bleed out on the next ride.

Preview Image Size Thumbnail Small Medium Large

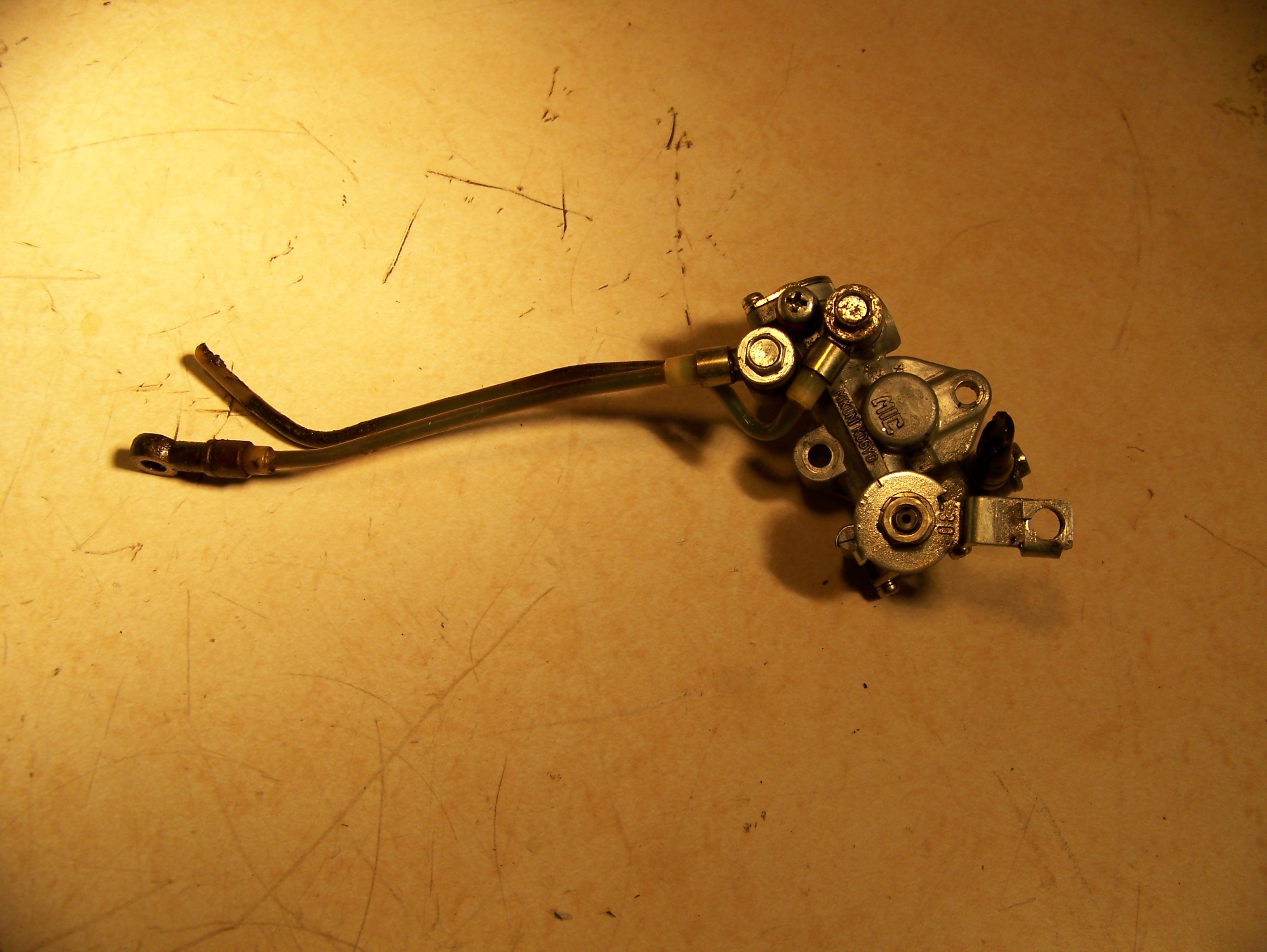

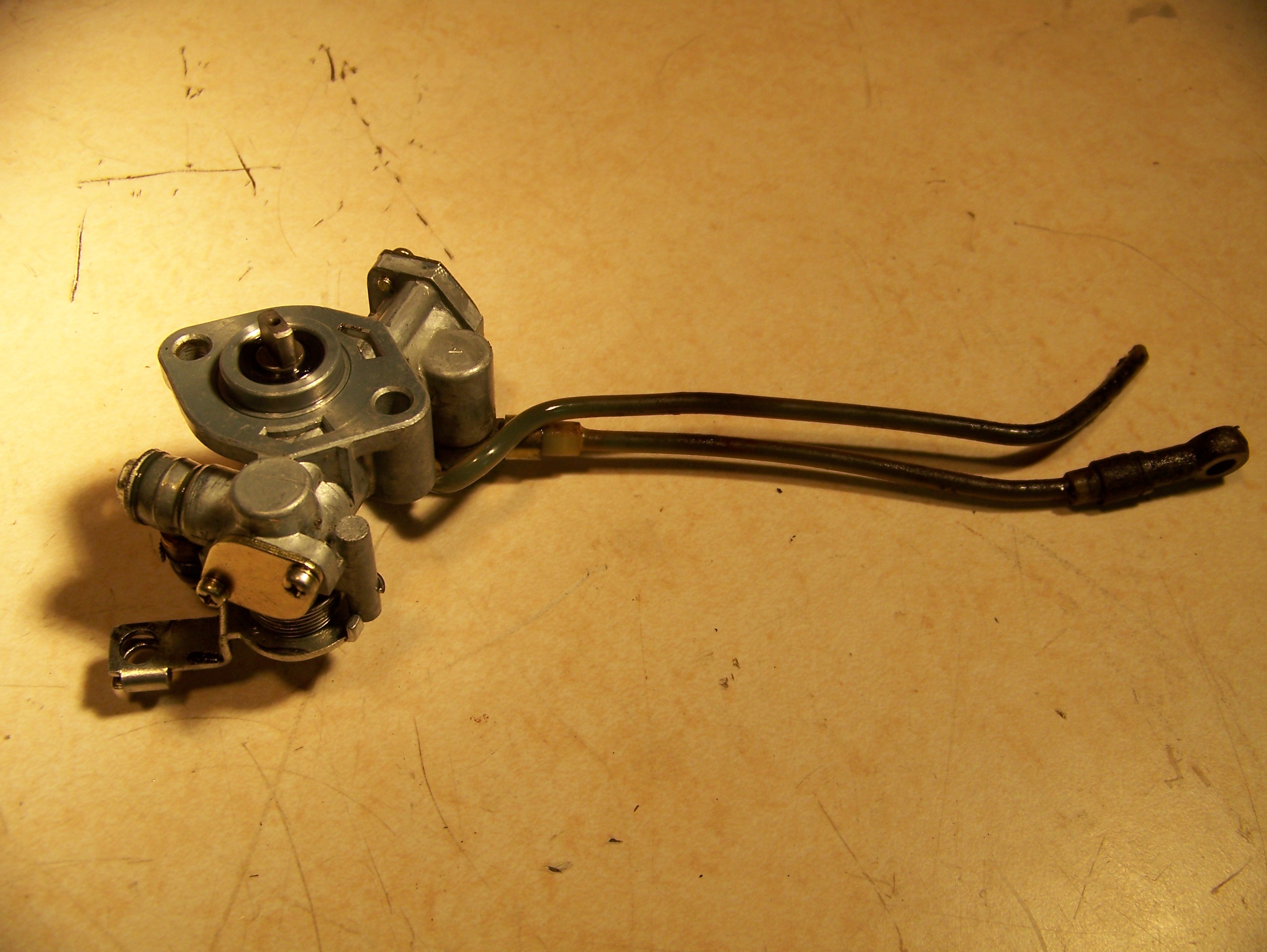

Smll Med Lrg	Smll Med Lrg	Smll Med Lrg	Smll Med Lrg bummer that one of the oil sender lines is cut

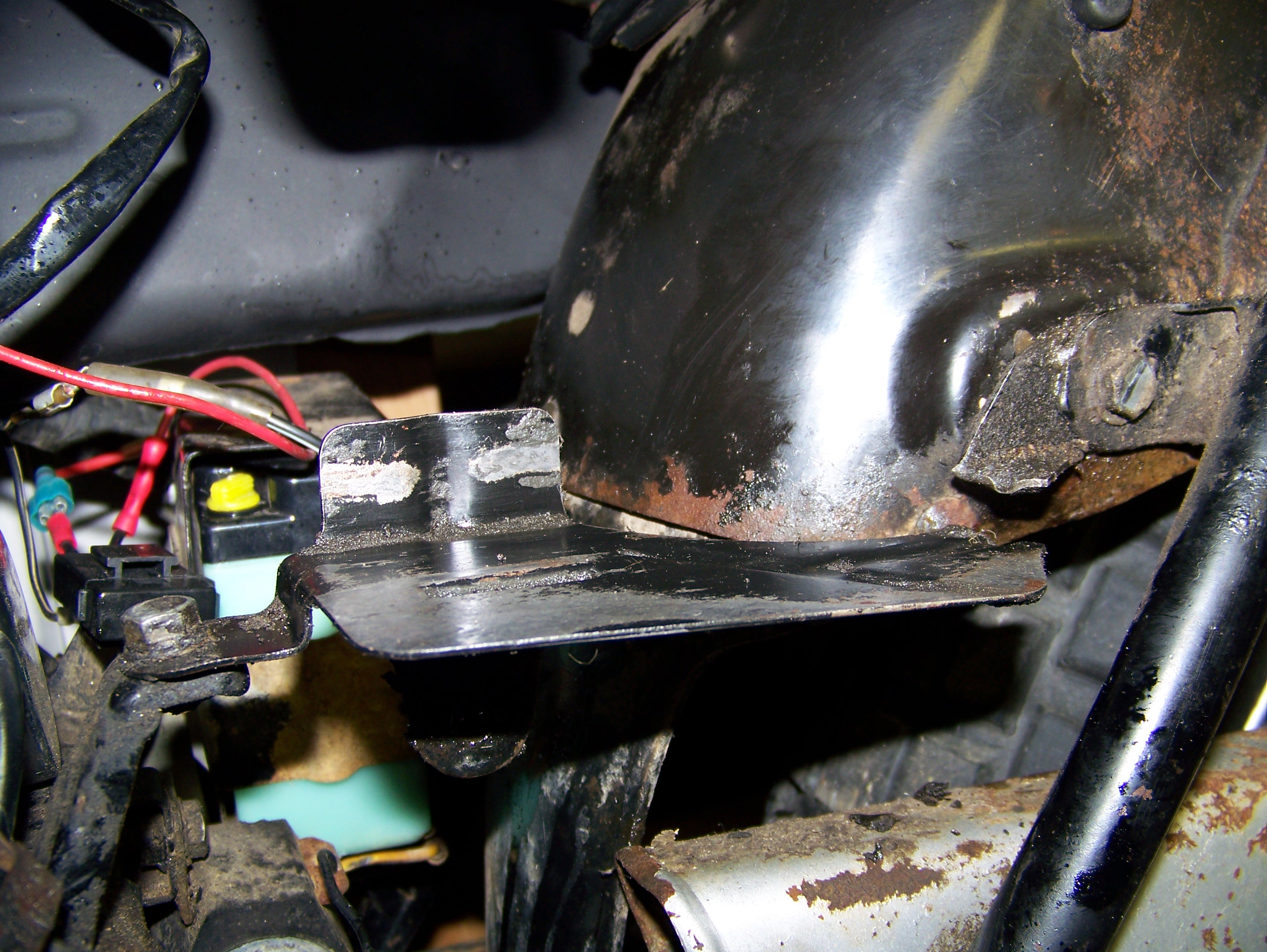

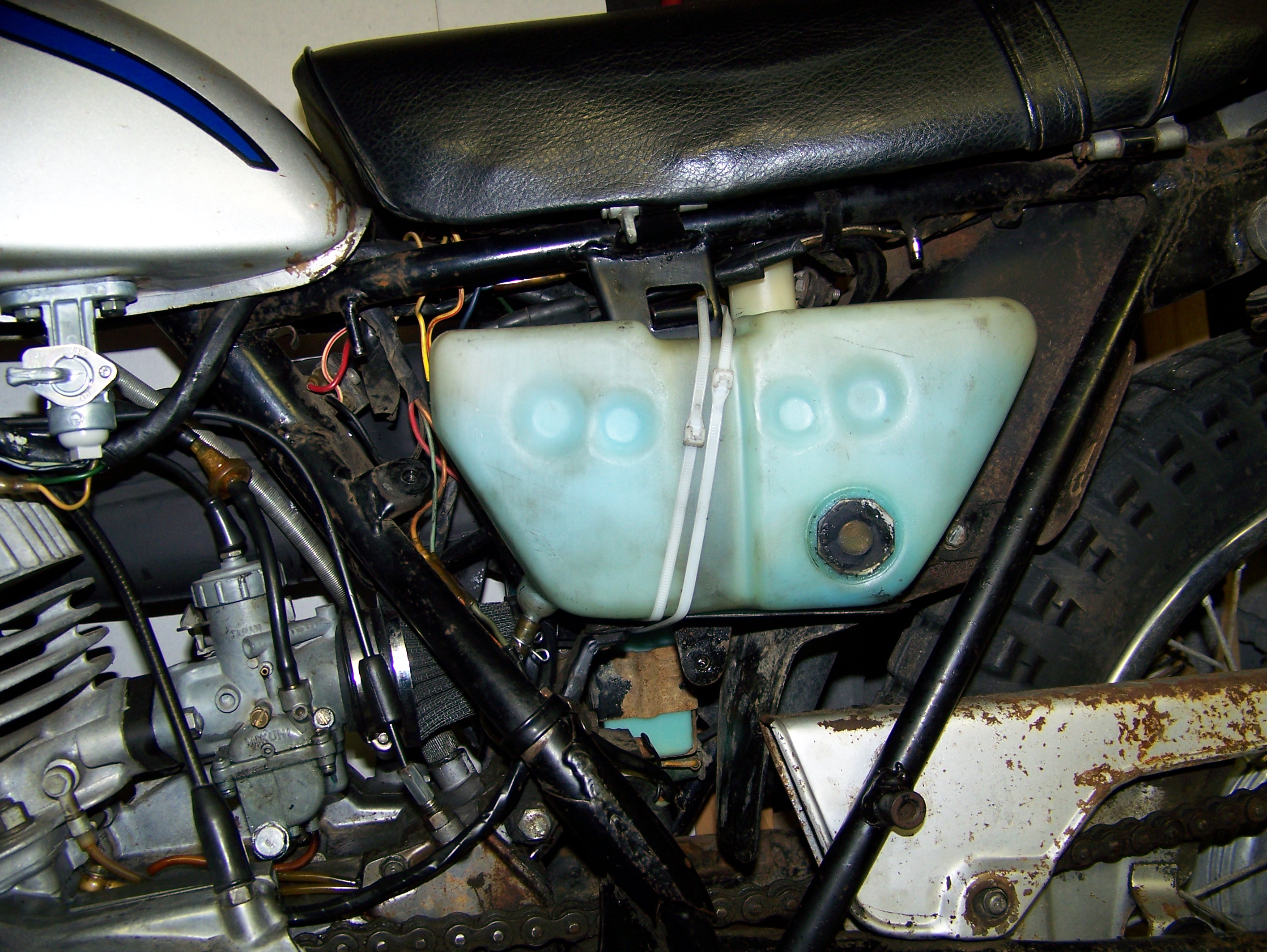

Smll Med Lrg	Smll Med Lrg reservoir mounting bracket is broken	Smll Med Lrg i am missing the hold down bracket. zip strips will do.	Smll Med Lrg
