Stan's MegaTune Displays and some XJ1100 Reference Diagrams
(Page 1 of 3)

Here's a complete set of my MegaTune displays taken from my ’06 Oct. 14 msq file (200610142245.msq). I'm including ALL the displays for completeness, even though many of the displays are unchanged from their default settings.
The most important displays are in red.

QUICK JUMP TABLE

Basic Settings
Main Display		 Engine Constants 1 EGO Control Fuel VE Table Accel Decel Mode RPM Based Accel Code Based and Output Functions
Crank/WarmUp Crank Settings More Cranking Stuff After Start Enrichment
More Settings
(Page 2)		 Idle Control Rev Limiter Type Rev Limits Lambda AFR Settings Open Loop Mode Over Run Settings Tacho Output Pin Barometric Correction Outputs Shift Light / Fan/ Output 3+4
Spark Spark Settings Spark Table 1 Spark Table Selection Idle Advance Settings Knock System IAT/Clt Related Ignition Dwell Settings Stim for Wheel Rotary Trailing Settings

Advance
(Page 2)

 Fuel Table Selection Launch Control Water Injection Settings Nitrous System Staged Injection Overboost Protection Anti-Rev System Coolant Related Air Density Advanced Code Options
Tuning
Communications Settings
XJ1100 Reference Diagrams
(Page 3)		 Ignition Timing Wiring Diagram





MegaTune 2.25

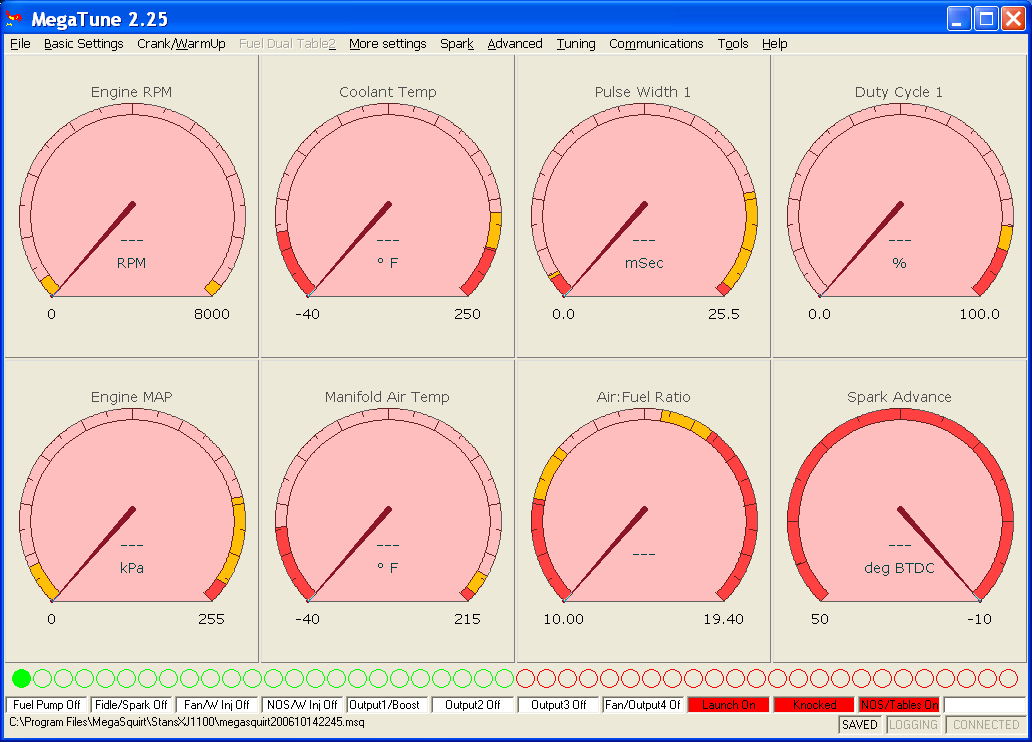

The Main Display

Back to Top





BASIC SETTINGS

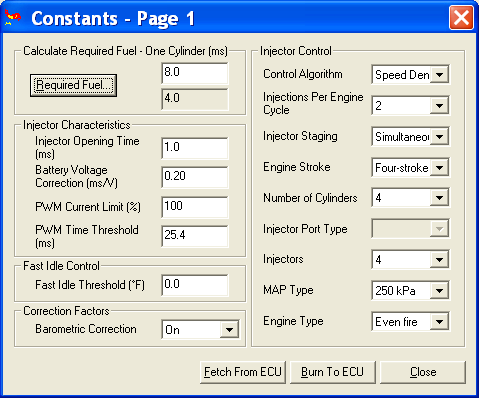

Engine Constants 1
Back to Top


BASIC SETTINGS

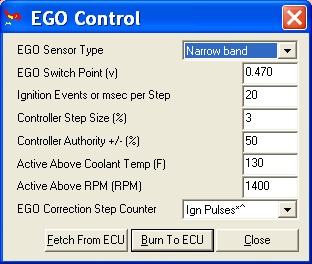

Exhaust Gas Settings
Back to Top




 BASIC SETTINGS

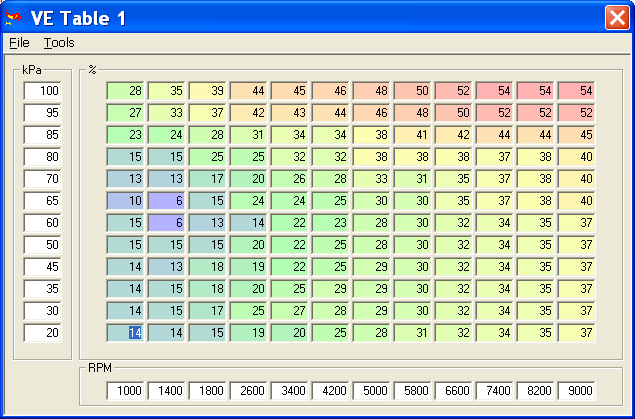

Fuel VE Table 1
Back to Top







BASIC SETTINGS

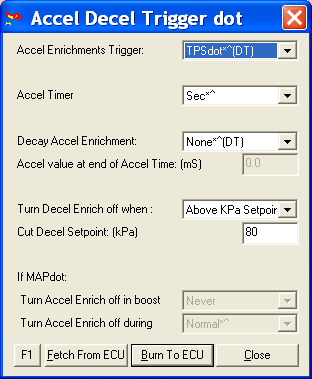

Accel Deccel Mode
Back to Top




BASIC SETTINGS

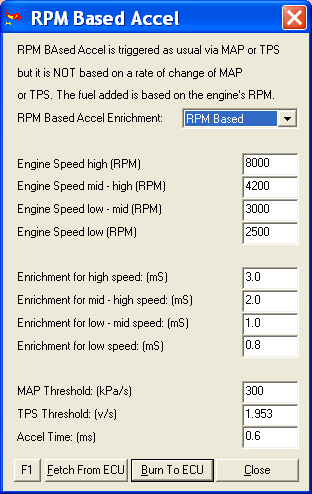

RPM Based Accel

Back to Top







 BASIC SETTINGS

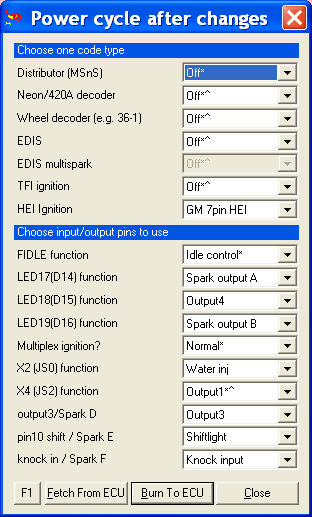

Code Based and Outputs Function

Back to Top



CRANK/WARM UP

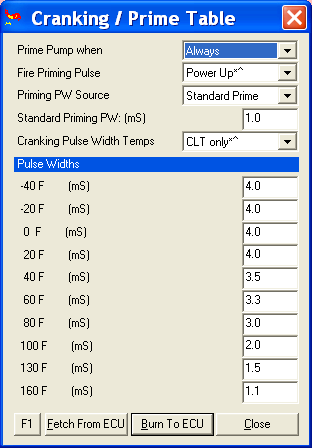

Crank Settings

Back to Top



  CRANK/WARM UP

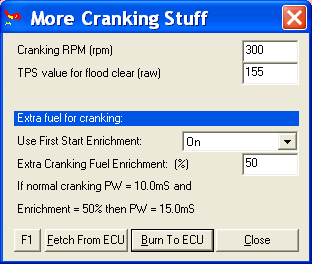

More Cranking Stuff

Back to Top







  CRANK/WARM UP

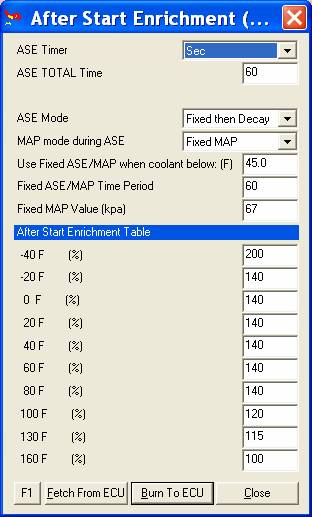

After Start Enrichment

Back to Top





SPARK

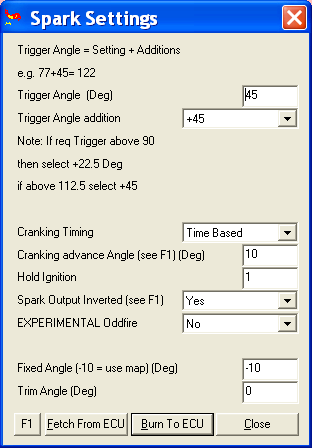

Spark Setting

Back to Top





 SPARK

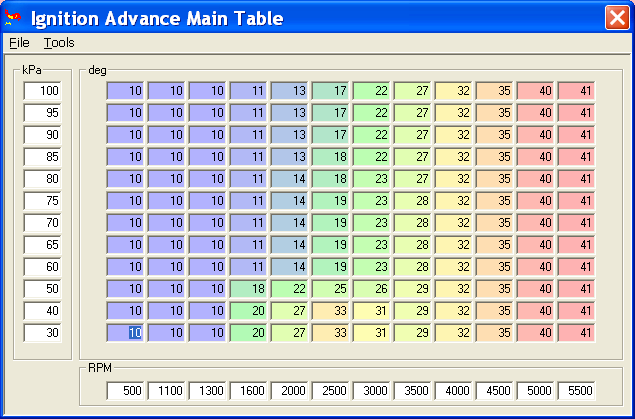

Spark Table 1 (For reference only, I’m still tuning this table, Do NOT use these setting.)

Back to Top



SPARK

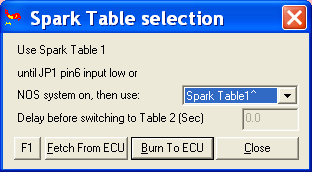

Spark Table Selection

Back to Top







 SPARK

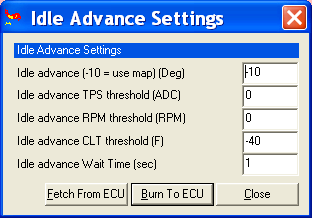

Idle Advance Settings

Back to Top







 SPARK

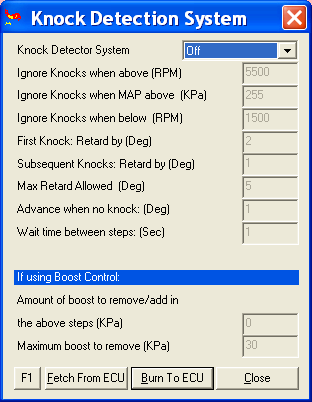

Knock System

Back to Top







 SPARK

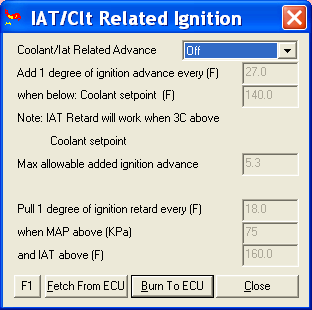

IAT/Clt Related Ignition

Back to Top


 SPARK

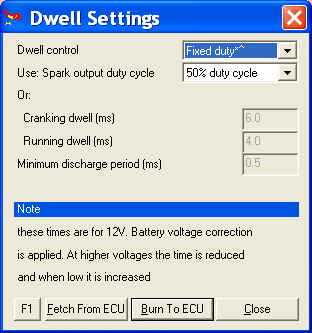

Dwell Settings

Back to Top






 SPARK

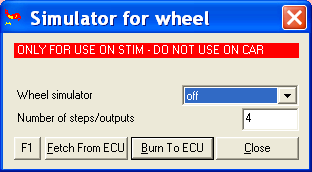

Stim for Wheel

Back to Top




 SPARK

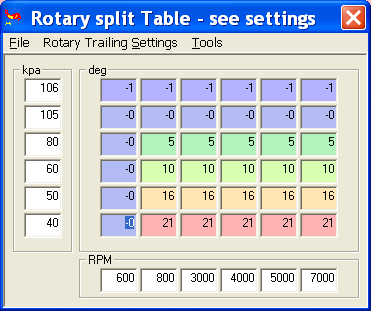

Rotary trailing settings

Back to Top









TUNING

You use these windows for tuning in real-time.
Back to Top

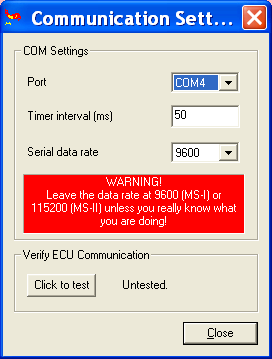

COMMUNICATIONS
Settings…
